Heavy-Duty Passenger Hoists & Custom Electrical Control Panels

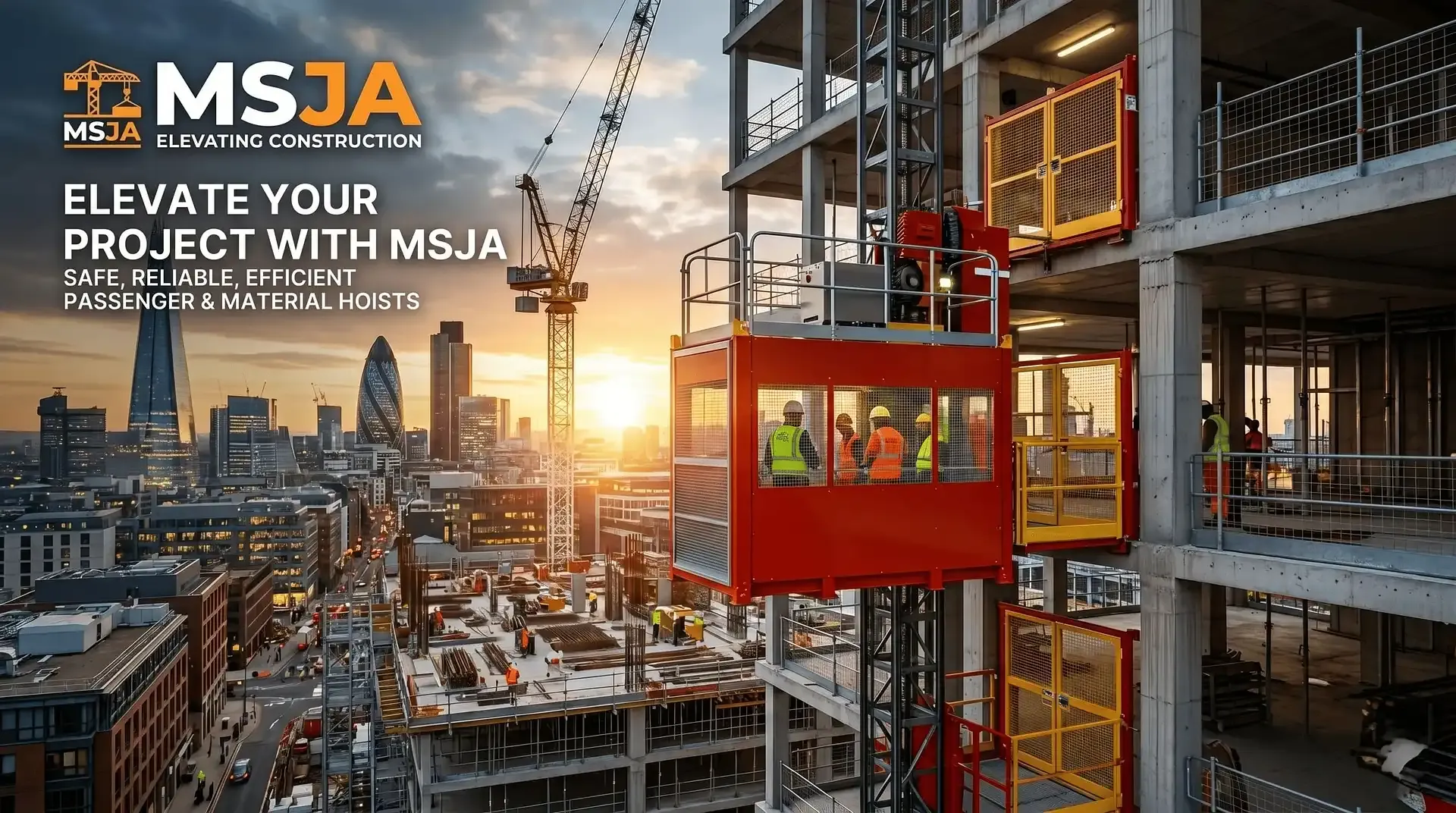

A Passenger Cum Material Hoist is a heavy-duty vertical transport machine engineered to move construction personnel, engineers, tools, and raw building materials safely up high-rise structures, chimneys, and industrial towers.

Unlike conventional wire-rope winches that suffer from rope elongation, swaying, and drum slippage at high altitudes, modern industrial hoists use Rack-and-Pinion drive mechanics:

• A hardened steel toothed rack is welded directly along the vertical mast sections.
• Electric drive motors mounted on the cage drive pinion gears that mesh precisely with the rack teeth.
• As the pinions rotate, they climb the rigid mast mechanically without reliance on friction or suspension cables.

MSJA Engineers manufactures rack-and-pinion hoists using CNC laser-cut racks and precision-ground alloy pinions, providing high duty-cycle longevity and zero vertical slippage even in severe weather and abrasive dust conditions. Read the full working principle guide →

India's passenger hoist manufacturing industry is served by several established companies. Major players include Jaypee India Ltd (Kolkata), Spartan Engineering Industries (Mumbai), and Everest Engineering Equipment (GJJ distributor). International brands like Alimak Group (Sweden) serve the ultra-premium segment.

MSJA Engineers Private Limited (Est. 2011, formerly Spectrum Engineers) differentiates itself with a unique capability that no other Indian hoist manufacturer offers: both the mechanical rack-and-pinion hoist AND the internal VFD/PLC electrical control panel are designed and manufactured in-house under one roof. This eliminates third-party dependency for electrical breakdowns and ensures seamlessly integrated performance.

MSJA supplies hoists from 400 KG to 2000 KG capacity across India for high-rise construction, thermal power chimneys, cement silos, metro rail stations, and bridge pylons. View our full hoist range →

This distinction is legally critical under Indian law:

• Passenger Hoist (Passenger Cum Material Hoist): An enclosed cabin with certified safety mechanisms (SAJ progressive anti-fall governor, interlocked landing doors, electronic overload sensing, phase failure relays) designed and rated to safely carry both workers and materials simultaneously.
• Material Hoist (Goods-Only Hoist): An open or semi-enclosed platform designed exclusively for moving construction materials (bricks, cement, rebar). It is NOT rated or legally permitted to carry people.

⚠️ Under the BOCW Act (Building and Other Construction Workers Act & Central Rules, 1998), workers are strictly prohibited from riding material-only hoists. Violations carry severe penalties and criminal liability in case of accidents.

If your site needs to transport both workers and materials, you must use a certified passenger cum material hoist like the MSJA 1000–2000 series →

Construction passenger hoists are available in a wide range of payload capacities depending on the project scale:

• 400–600 KG: Compact inspection and chimney maintenance configurations (e.g., MSJA 400, MSJA 600).
• 1000 KG: Mid-rise commercial buildings and refinery blocks (e.g., MSJA 1000).
• 1500 KG: Severe-duty environments like cement plants and coastal infrastructure (e.g., MSJA 1500).
• 2000 KG: Heavy-duty maximum payload for mega high-rise towers, metro rail, and mining (e.g., MSJA 2000, available in twin-cage configuration).

Some manufacturers offer capacities up to 3200 KG or higher for specialized heavy-lift applications. MSJA's standard range covers 400 KG to 2000 KG with custom configurations available. See our Twin Cage 2000 KG model →

Construction hoist pricing in India varies dramatically based on type, capacity, and configuration:

• Basic wire-rope builder hoist (500 KG, material only): ₹60,000 – ₹3,00,000
• Builder tower hoist (unenclosed platform, up to 1T): ₹3,00,000 – ₹7,50,000
• Entry-level rack & pinion passenger hoist (1.0T, single cage): ₹6,00,000 – ₹10,00,000
• Standard passenger & material hoist (1.5T–2.0T, single cage, 40–100m mast): ₹12,00,000 – ₹22,00,000
• High-speed twin cage hoist (2 × 2.0T, VFD, 150m–300m height): ₹35,00,000 – ₹85,00,000+

Note: Prices are approximate market ranges and vary by manufacturer, mast height, and site requirements. Contact for project-specific quotation.

For projects where capital expenditure is a constraint, consider renting an MSJA hoist → with monthly plans starting from ₹80,000/month.

Passenger hoist rental in India is typically structured as a monthly contract with additional project charges:

• 1,000 KG Single Cage: ₹80,000 – ₹1,10,000 / month
• 2,000 KG Single Cage: ₹1,00,000 – ₹1,75,000 / month
• Twin Cage (1T + 1T): ₹1,50,000 – ₹2,20,000 / month
• Twin Cage (2T + 2T): ₹2,00,000 – ₹3,00,000 / month

Additional project charges typically include:

• Mobilization & demobilization: ₹50,000 – ₹1,50,000
• Erection & commissioning: ₹30,000 – ₹60,000 base + per-meter charges
• Certified operator (per shift): ₹25,000 – ₹35,000 / month
• Minimum lock-in: Typically 3–6 months

Note: Rates are indicative market ranges. Actual rates depend on capacity, site location, and contract duration.

MSJA offers flexible nationwide rental plans with maintenance included. Get a rental quote →

Passenger hoists in India must comply with a layered regulatory framework:

• IS 7521:1974 — BIS Safety Requirements for Builder's Hoists (structural strength, mast erection, rope/sheave safety).
• IS 12466:1988 — General Requirements for Builder's Hoists (primarily covers winch-and-rope material hoists).
• EN 12159 / CE Machinery Directive 2006/42/EC — The European standard specifically for rack-and-pinion passenger hoists. Major Indian EPCs (L&T, Shapoorji Pallonji, Tata Projects) demand EN 12159 compliance.
• BOCW Act & Central Rules 1998 (Sections 56–70) — Mandates interlocked enclosure gates, overload sensors, daily logbook testing, and prohibits worker transport on material-only hoists.
• Factories Act 1948 (Section 28/29) — Requires 6-monthly examination by an authorized "Competent Person" issuing Form 11 (Certificate of Test & Examination).

Every MSJA hoist is manufactured to meet these requirements and is drop-tested on-site before handover. Read our complete safety standards guide →

The SAJ Progressive Safety Governor is the most critical safety device on an MSJA passenger hoist. It operates completely independently of the electrical drive system — even if every electrical component fails, this mechanical device will stop the cage.

• If the cage downward speed exceeds the calibrated threshold (e.g., due to a gearbox mechanical failure or brake slippage), centrifugal weights within the governor fly outward instantly.
• These weights engage a progressive brake drum that clamps the cage safely to the mast within a few centimeters.
• Because it is progressive (not abrupt), the deceleration is smooth — preventing severe shock loads that could injure personnel.

Every MSJA hoist is rigorously drop-tested on-site prior to handover to ensure the SAJ governor activates flawlessly under full payload conditions.

For buildings exceeding 10–15 floors, rack-and-pinion drives are universally preferred over wire-rope winches for critical engineering reasons:

• No Rope Elongation or Slippage: Wire ropes stretch under load and slip on drums at height. Rack-and-pinion is a rigid mechanical mesh — zero vertical play.
• Infinite Height Scalability: Simply bolt additional mast sections as the building rises. Wire-rope systems are limited by drum capacity and rope weight.
• Twin Cage Capability: Two independent cages can operate on a single mast column simultaneously — impossible with wire rope.
• Failsafe Progressive Braking: The SAJ centrifugal governor clamps directly onto the rigid mast rack. Wire-rope emergency brakes rely on friction — far less reliable at height.
• Higher Duty Cycle: Rack-and-pinion systems handle 150+ trips/day without thermal fatigue of the drive components.

Read the full engineering comparison →

Construction sites and coastal ports are brutal environments for steel structures. MSJA employs advanced metallurgy and surface treatments for decades of operational life:

• Hot-Dip Galvanization: Mast sections, tie-in brackets, and base frames undergo hot-dip galvanizing, coating the steel in a thick protective zinc layer that prevents rust even in salty or humid coastal air.
• 7-Tank Chemical Treatment: Electrical enclosures and cage wall panels are chemically treated and finished with an 80-micron thermosetting powder coating — highly resistant to abrasive cement dust and moisture.
• Sealed Bearings & IP65 Enclosures: Heavy-duty sealed tracking rollers and IP65-rated control panels completely block dust and water ingress.

Direct-On-Line (DOL) hoists jerk violently and draw massive starting currents. MSJA's standard integration of VFD frequency inverter control delivers massive ROI for builders:

• Generator Fuel Savings: VFD soft-starts keep starting current below 1.5x of rated current. Sites can use smaller DG sets, saving thousands of liters of diesel fuel over a project's lifespan.
• Elimination of Mechanical Jerk: Smooth acceleration eliminates dynamic shock loads on pinion teeth and gearboxes, drastically reducing mechanical wear and tear.
• Higher Worker Throughput: Precision VFD floor-leveling aligns the cage perfectly flush with the slab. Workers can roll heavy pallet trolleys directly in and out, speeding up load cycles by up to 40%.
• Variable Speed Capability: Speeds adjustable from 0 to 40 m/min or higher depending on site height and logistics requirements.

To ensure zero downtime, MSJA offers two tiers of nationwide maintenance support:

• Comprehensive AMC: The ultimate peace-of-mind package. Covers all scheduled monthly preventive maintenance visits, unlimited emergency breakdown visits, and includes the cost of all replacement spare parts and consumables (oils, contactors, rollers, brake pads).
• Non-Comprehensive AMC: Ideal for builders with their own procurement teams. MSJA provides expert labor, routine inspections, and technical troubleshooting. Spare parts are billed separately at discounted rates when needed.

Both plans include rigorous safety audits, drop tests, and priority dispatch of service engineers across India.

We maintain a centralized inventory of high-wear OEM spare parts at our Delhi-NCR facility for immediate pan-India dispatch:

• Mechanical: Hardened pinion gears, SAJ safety governors, PU tracking rollers, rack sections, brake discs, guide rollers, and mast bolts.
• Electrical: VFD drives, limit switches (upper, lower, over-travel), heavy-duty contactors, trailing cables, load cell sensors, and phase failure relays.
• Drive Units: Complete motor-gearbox assemblies ready for immediate swap-out to minimize downtime.
• Enclosure & Structure: Cage door panels, landing gate assemblies, solenoid interlocks, and IP65 control panel enclosures.

Using 100% genuine MSJA spare parts ensures the safety calibration and warranty of your vertical transport systems remains intact. Order spare parts via WhatsApp →

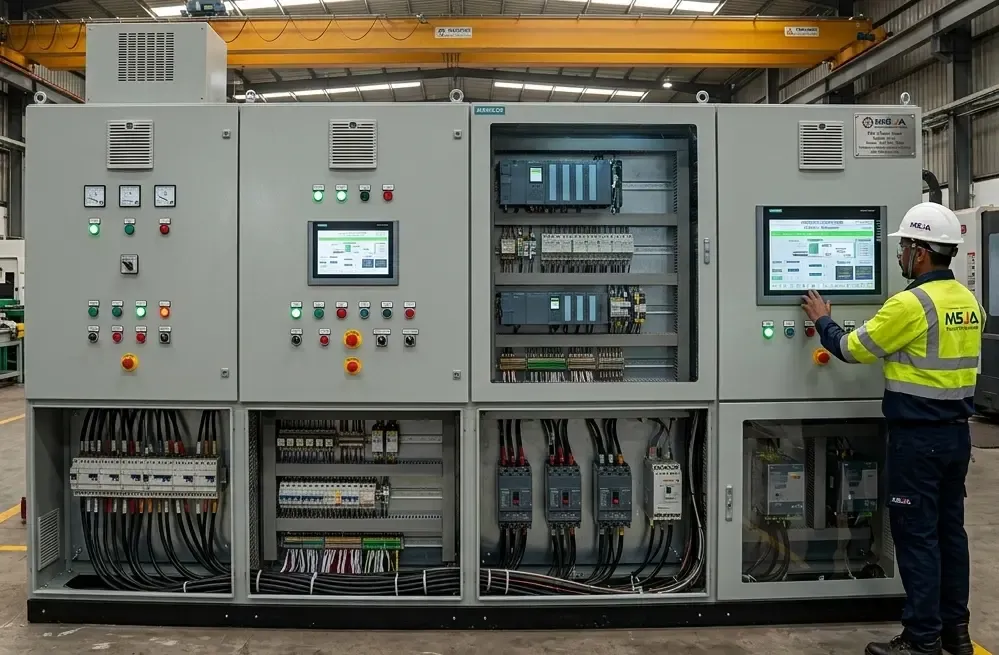

MSJA Engineers designs, fabricates, and commissions the complete spectrum of industrial electrical control panels:

• VFD (Variable Frequency Drive) Panels — Precision AC motor speed control and energy conservation.
• PLC (Programmable Logic Controller) Panels — Industrial sequence logic, process control, and automation.
• MCC (Motor Control Center) Panels — Centralized motor starters with Form 3B/4B compartmentalization.
• PCC (Power Control Center) Panels — Primary heavy current intake and busbar distribution up to 6300A.
• APFC (Automatic Power Factor Correction) Panels — Capacitor switching to maintain unity power factor.
• AMF (Auto Mains Failure) Panels — Grid-to-generator automatic changeover in under 10 seconds.
• Synchronizing Panels — Parallel DG operation and seamless grid transition.
• HT (High Tension) Panels — 11kV/33kV distribution with vacuum circuit breakers.
• SCADA Systems — Real-time plant telemetry, remote monitoring, and process automation.

All panels are fabricated from 1.6mm–2.0mm CRCA steel with 7-tank chemical treatment and 80-micron powder coating. View our full panel range →

The IP (Ingress Protection) rating defines how well a panel enclosure prevents dust and liquid from entering:

• IP54: Dust protected (limited ingress) and splash-proof from any direction. Suitable for indoor clean factory floors.
• IP55 (MSJA Standard): Dust protected with continuous foam gasketing, protected against water jets from any nozzle. Ideal for cement plants, textile mills, and damp tunnels.
• IP65 (Severe-Duty): Completely dust-tight (zero particle ingress) and protected against heavy water jets. Essential for chemical plants, offshore ports, outdoor solar yards, and coastal sites.

MSJA panels undergo rigorous 7-tank anti-corrosion treatment followed by 80-micron thermosetting powder coating for maximum environmental resilience.
